Standard Steel Pipe Nipple Lengths

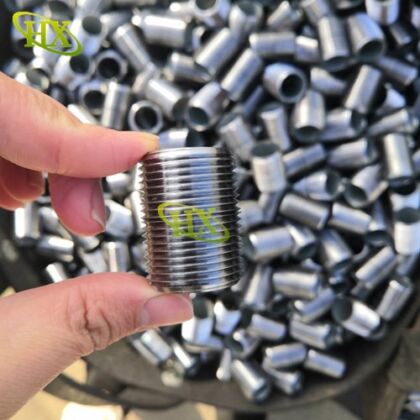

    1.Close Nipple (Shortest Length)

 Length: Threads run nearly the entire length, leaving almost no unthreaded space.

 Applications: Tight spaces where minimal length is required.

 Common Sizes: 1/8″ to 4″ diameters.

2. Short Nipple

 Length: Slightly longer than a close nipple, with a small unthreaded section.

 Typical Lengths: 1″ to 2″ (varies by diameter).

 Applications: Compact installations with limited clearance.

3. Standard/Long Nipple

 Length: The most commonly used size, with a balanced threaded and unthreaded portion.

 Typical Lengths: 2″ to 12″ (or longer for custom orders).

 Applications: General plumbing, water lines, and industrial piping.

4. ExtraLong Nipple (Extension Nipple)

 Length: Extends beyond standard lengths for specific spacing needs.

 Typical Lengths: 12″ up to 36″ (custom lengths available).

 Applications: Largescale industrial systems requiring extended reach.

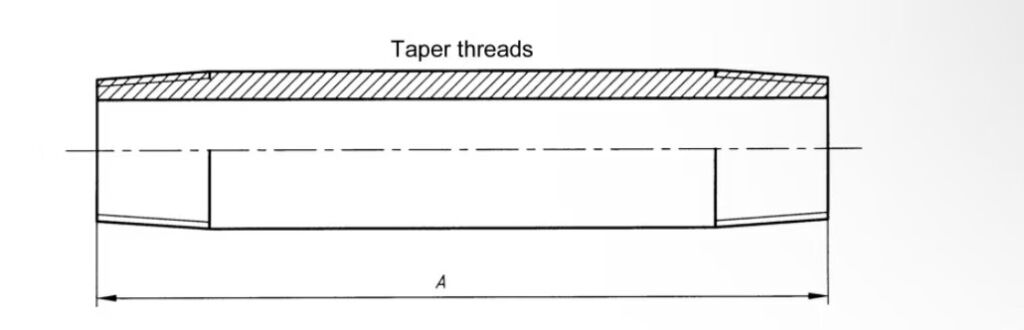

EN10241 pipe nipple lengths chart

Nominal Size DN	Overall length A MM
6 8 10	30 30 30	40 40 40	50 50 50	60 60 60	80 80 80	100 100 100	120 120 120	150 150 150	180 180 180	200 200 200	250 250 250	300 300 300
15 20 25		40 40	50 50 50	60 60 60	80 80 80	100 100 100	120 120 120	150 150 150	180 180 180	200 200 200	250 250 250	300 300 300
32 40 50			50 50	60 60 60	80 80 80	100 100 100	120 120 120	150 150 150	180 180 180	200 200 200	250 250 250	300 300 300
65 80 100					80 80	100 100 100	120 120 120	150 150 150	180 180 180	200 200 200	250 250 250	300 300 300	400 400
125 150							120 120	150 150	180 180	200 200	250 250	300 300	400 400	500 500
